PLATE TECHNOLOGY

For pin-registered printed circuit films

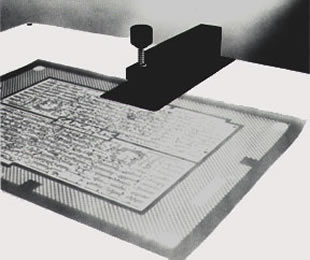

C.A.PICARD® offers a single-hole, manually operated punch expressly for punching film requiring pin registration. It can punch registration holes for all configurations and panel sizes.

Mounted on a 24" x 36" laminted formica base, it can be designed to your specifications to punch round (.093"-.312") holes. It is available at a competitive price, while filling the fundamental C.A.PICARD® design criteria: functionality, low-maintenance, durability, and ease of operation.

It functions primarily to punch film which has been aligned to a drill panel or template. The template or panel thus becomes the punch guide, providing a punching method that is simple, inexpensive and operator-friendly.

Contact C.A.PICARD® directly so we can help to specify a system that will maximize your productivity.

We would be pleased to provide you with a quotation for a single-hole film punch suited to your application. Please call or write for more information.
