Advantages for multilayer manufacturing
Post-etch punching avoids the tolerance errors that accumulate when punching is done prior to etching. As a result, multiple layers are registered with greater precision and the finished PCBs reflect maximum accuracy. In other words, the post-etch process dramatically improves multilayer productivity and yields.

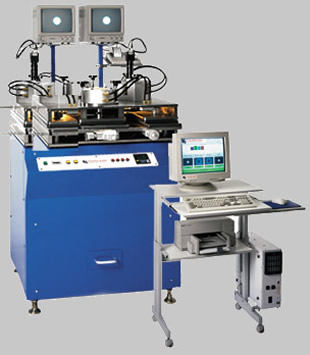

Semi-automatic and manual models available
- Semi-automatic system can be operated in manual or semi-automatic mode.
- Due to its versatile design, the manual system can be easily upgraded to semi-automatic.
Vision system determines when to punch
- The computerized vision system and software ensure optimum accuracy by automating the punch/no punch decision process.
- Materials that are out of tolerance are automatically rejected.
SPC feedback enables finely tuned production
- The SPC feature (standard with the semi-automatic model) enables you to monitor dimensional change to determine scaling factors for innerlayerartwork.
Panel size: Accepts panels from 12" x 12" up to 21" x 24". Custom configurations also available.
Contact C.A.PICARD® directly so we can help to specify a system that will maximize your productivity.
