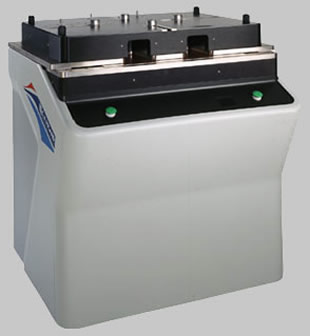

Pneumatic material punch

The Pinlam PM pneumatic material punch provides an accurate, dependable and economical method to punch registration holes into printed circuit materials.

• Heavy duty, accurate punch
• For a wide range of printed circuit materials (core, prepreg, copper, aluminum, etc.)
• Can be configured to accommodate most registration layouts
• Accurate
• Dependable

Advantages

• Simple, economical design
• Easy to operate, fast setup
• Flexibility
  - Built to customer registration requirements
  - Wide range of material types, thicknesses and sizes
• Easy to maintain
• Safe, quiet and clean operation

Features

• Plated steel construction
• Precision machined tooling positions with hardened guides and dies

Specifications

• Maximum material size and tooling layout per customer requirements
• Punch position accuracy: ± 0.001" (± 0.0005" available)
• Repeatability: ± 0.0005"
• Maximum material thickness: 0.125"
• Air requirements: 80-120 psi
