PLATE TECHNOLOGY

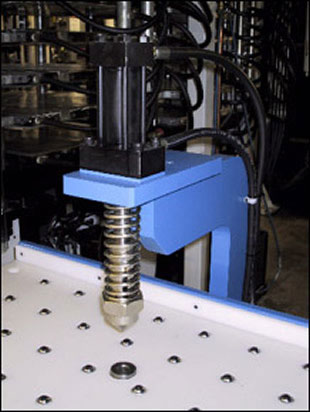

Advantages of the DEP-15/DEP-8

The C.A.PICARD® depinner improves your productivity by speeding up the process of depinning lamination kits and providing ergonomic improvements. Additionally, damage to expensive lamination tools is virtually eliminated.

Specifications

  • Up to 45"x48" ball table on advanced model 36"x36" on standard model
  • Up to 2.5 inch thick printed circuit board lamination packages
  • Guided depinning pin
  • Quick change collet held depinner pin
  • Spring loaded stripper nose strips bushing from depinner pin
  • Sized to remove up to ¼" lamination pins
  • Foot pedal actuation
  • Easy removal pin collection bin
  • 15" throat depth on advanced model (DEP-15)
  • 8" throat depth on standard model (DEP-8)
  • Ball top table dimensions are optional

Operation

  • Place the template over the book top lamination plate.

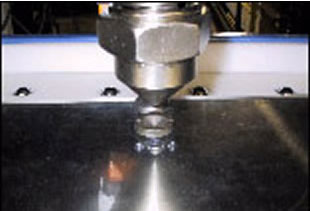

  • Position the target bushing under the nose of the depinner.
  • Depress the foot pedal to begin the depinning process.
  • When the depinner head reaches full stroke, release the foot pedal for depinner head retraction.



Contact C.A.PICARD® directly so we can help to specify a system that will maximize your productivity.
