EXTRUDER TECHNOLOGY

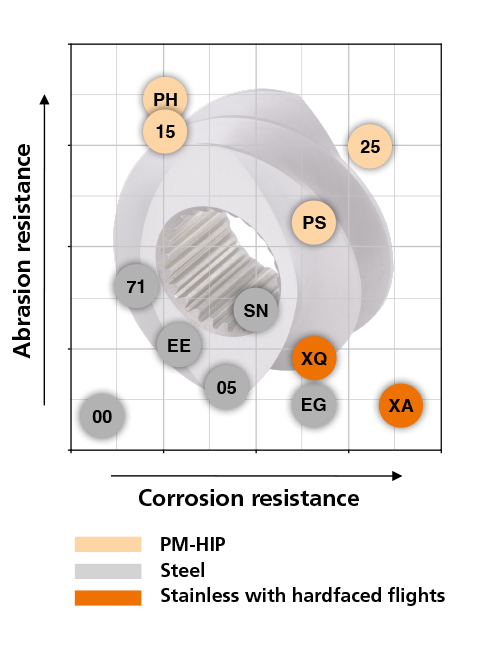

Materials for segments:

CodeMaterialHardness
00Nitrided steel900-1050 HV0,5
05Hardened stainless steel48-50 HRC
71Tool steel58-60 HRC
EBNitrided stainless steel900-1050 HV
SNStainless tool steel58-60 HRC
SDPM tool steel61-64 HRC
15PM-HIP compound61-65 HRC
PHPM-HIP compound64-66 HRC
PSPM-HIP compound56-60 HRC
25PM-HIP compound56-60 HRC
PPPM-HIP compound62-65 HRC
XAStainless with hardfaced flights38-42 HRC
XQStainless with hardfaced flights34-40 HRC
The mentioned categories are based on C.A.PICARD’s experience, material analyses, and information provided by customers.
